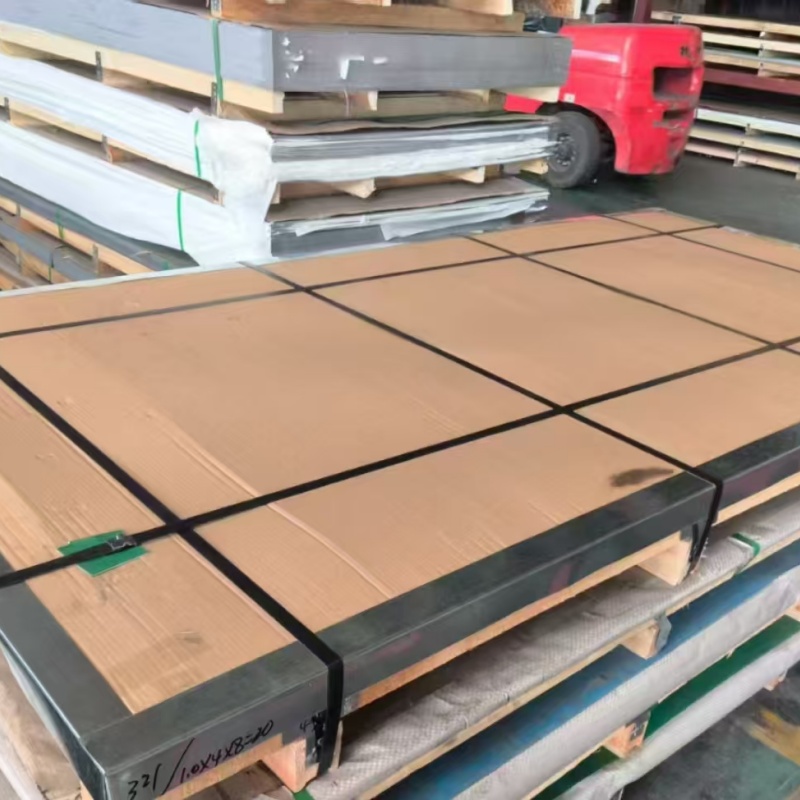

THE ABOVE PHOTO IS PRODUCED FOR OUR CLIENT FROM UAE

Size  :1220*2440*1mm

Grade :  AISI   321

Chemical Properties

321 stainless steel is a titanium-stabilized austenitic stainless steel (similar to 304 but with added titanium to prevent chromium carbide precipitation). It offers excellent high-temperature resistance and intergranular corrosion resistance.

 Typical Chemical Composition (%):

Element Composition

Chromium (Cr) 17.0 – 19.0

Nickel (Ni) 9.0 – 12.0

Carbon (C) ≤ 0.08

Manganese (Mn) ≤ 2.0

Silicon (Si) ≤ 1.0

Phosphorus (P) ≤ 0.045

Sulfur (S) ≤ 0.03

Titanium (Ti) ≥ 5×C (min. 0.4%)

Iron (Fe) Balance

Key Features

✔ High-temperature stability (up to 800-900°C)

✔ Resists carbide precipitation (sensitization) during welding

✔ Good oxidation & corrosion resistance (better than 304 in some environments)

 Applications

Due to its heat resistance and weldability, 321 stainless steel is widely used in:

Aerospace & Jet Engine Components (exhaust systems, combustion chambers)

Chemical & Petrochemical Equipment (heat exchangers, pressure vessels)

 High-Temperature Pipelines & Boilers (thermal stability)

 Automotive Exhaust Systems (manifolds, catalytic converters)

 Food Processing & Pharmaceutical Equipment (where welding is required)

 Heat Treatment & Furnace Parts (due to oxidation resistance)

Specifications & Forms

321 stainless steel is available in:

 1. Plate / Sheet

Thickness: 0.1mm – 100mm

 Width: 1000mm, 1219mm, 1500mm (standard)

 Surface Finishes:

 2B (smooth, slightly reflective)

 No. 4 (brushed, matte finish)

 BA (bright annealed, mirror-like)

 2. Pipe / Tube

Seamless & Welded

 Sizes: 1/8″ to 24″ (or custom)

 Standards: ASTM A312, A213

 3. Bar / Rod

Round, Square, Hexagonal

 Diameter: 1mm – 500mm

 4. Wire & Fasteners

Used in high-temperature bolts, nuts, and springs

 International Standards

Standard Equivalent Designation

ASTM A240 (Plate), A312 (Pipe), A276 (Bar)

EN (EU) 1.4541 (X6CrNiTi18-10)

JIS (Japan) SUS321

GB (China) 0Cr18Ni10Ti

Why Choose 321 Stainless Steel?

✅ Superior high-temperature performance (vs. 304/316)

✅ Reduced risk of intergranular corrosion after welding

✅ Widely used in aerospace, automotive, and chemical industries

Stainless Steel Sheet & Plate Applications

Stainless steel sheet & plate have a variety of industrial applications, some of which include:

l  Food Processing & Handling

l  Heat Exchangers

l  Chemical Process Vessels

l  Conveyors

Features

1     commodity     stainless  steel  sheet/Plate

2     material  201, 202, 304, 304L, 316, 316L, 309S, 310S, 317L, 321, 409, 409L, 410, 420, 430, etc

3     surface   2B, BA, HL, 4K, 6K, 8KNO. 1, NO. 2, NO. 3, NO. 4, NO. 5, and  so  on

4     standard AISI, ASTM, DIN, EN, GB, JIS, etc

5     specification

(1)    thickness:   0.3mm-  100mm

(2)    width: 1000mm, 1250mm, 1500mm, 1800mm, 2000mm, etc

(3)    length: 2000mm2440mm, 3000mm, 6000mm, etc

(4)    The  specifications  can  be  provided  as  clients’   requirement.

6     application

(1)    Construction, decoration

(2)    petroleum, chemical  industry

(3)    electrical  appliances, automotive, aerospace

(4)    house  ware, kitchen  appliances, cutlery, foodstuff

(5)    surgical  instrument

7     advantage

(1)   High  surface  quality, clean, smooth  finish

(2)    Good  corrosion  resistance, durability  than  ordinary  steel

(3)    High  strength  and  to  deform

(4)    Not  easy  to  be  oxidized

(5)    Good  welding  performance

(6)    The  use  of  diversity

8     package

(1)    Products  are  packed  and  labeled  according  to  regulation

(2)    According  to  customers’   requirement

9     delivery       within  20  working  days  since  we  get  the  deposit,mainly  according  to  your  quantity  and  the  ways  of  transportation.

10    payment   T/T, L/C

11    shipment         FOB/CIF/CFR

12    productivity  500tons/month

13    Note       We  can  supply  other  grade  products  as  customers’   requirement.

Standard & Material

1   ASTM A240 Standard

201, 304 304L 304H 309S 309H 310S 310H 316 316H 316L 316Ti 317 317L 321 321H 347 347H 409 410 410S 430 904L

2  ASTM A480 Standard

302, s30215, s30452, s30615, 308, 309, 309Cb, 310, 310Cb, S32615,S33228, S38100, 304H, 309H, 310H, 316H, 309HCb, 310HCb, 321H,347H, 348H, S31060, N08811, N08020, N08367, N08810, N08904,N08926, S31277, S20161, S30600, S30601, S31254, S31266,S32050, S32654, S32053, S31727, S33228, S34565, S35315,S31200, S31803, S32001, S32550, S31260, S32003, S32101,S32205, S32304, S32506, S32520, S32750, S32760, S32900, S32906, S32950, S32974

3  JIS 4304-2005 Standard SUS301L,SUS301J1,SUS302,SUS304, SUS304L, SUS316/316L, SUS309S, SUS310S, 3SUS21L, SUS347, SUS410L, SUS430, SUS630

4  JIS G4305 Standard

SUS301, SUS301L, SUS301J1, SUS302B, SUS304, SUS304Cu,SUS304L, SUS304N1, SUS304N2, SUS304LN, SUS304J1, SUSJ2,SUS305, SUS309S, SUS310S, SUS312L, SUS315J1, SUS315J2,SUS316, SUS316L, SUS316N, SUS316LN, SUS316Ti, SUS316J1,SUS316J1L,SUS317, SUS317L, SUS317LN, SUS317J1, SUS317J2,SUS836L, SUS890L, SUS321, SUS347, SUSXM7, SUSXM15J1, SUS329J1, SUS329J3L, SUS329J4L, SUS405, SUS410L, SUS429, SUS430, SUS430LX, SUS430J1L, SUS434, SUS436L, SUS436J1L,SUS444, SUS445J1, SUS445J2, SUS447J1, SUSXM27, SUS403,SUS410, SUS410S, SUS420J1, SUS420J2, SUS440A

Surface treatment
